Spektrum AS3X Receivers SPMAR6335 / SPMAR636 / **SPMAR7350 / **SPMAR9350

A new generation of Spektrum AS3X (Artificial Stabilization – 3-aXis) receivers is about to make it easier than ever for fixed wing pilots to transform their flying experience with this amazing technology. Like their predecessors, they combine AS3X technology with a DSMX® receiver in a single unit. What sets them apart is new programming software that makes setup and adjustment of their AS3X settings much easier.

The new software’s easy-to-understand, graphical user interface will allow pilots to:
– Select which AS3X mode to fly with: Off, Conventional Rate and Heading Hold
– Activate flaperon/dual aileron, delta/elevon, V-tail or dual elevator mixing
– Take advantage of servo setup options like balancing, travel adjust, absolute limits, reversing and more
– Map output and gain settings for individual channels

• AS3X technology- 3 axis stabilization
• Integrated telemetry- provides real time telemetry data (with optional telemetry sensors) -7350/9350 only
• 3 Gyro modes- allows customization of the gyro performance and feel of the aircraft
• Programmable from mobile devices (iOS and Android) as well as PC’s–easy setup at home or at the field
• Standard servo connectors (AR6335 includes JST-ZHR connector)
• Compact design
• Lightweight

SPMAR6335
Type: Air
Channels: 6
Band: 2.4GHz
Modulation: DSMX/DSM2
Length: 1.12” (28.6mm)
Width: 0.72” (18.4mm)
Height: 0.28” (7.1mm)
Weight: 0.07oz (2.0g)
Experience Level: Intermediate

SPMAR636
Type: Air
Channels: 6
Band: 2.4GHz
Modulation: DSMX/DSM2
Length: 1.70” (42mm)
Width: 0.90” (23.5mm)
Height: .60” (14mm)
Weight: 0.36oz (10.2g)
Experience Level: Intermediate

SPMAR7350
Type: Air
Channels: 7
Band: 2.4GHz
Modulation: DSMX/DSM2
Length: 2.1” (53.48mm)
Width: 1.15” (29.15mm)
Height: 0.55” (14.05mm)
Weight: .814oz (21.5 grams)
Experience Level: Advanced

SPMAR9350
Type: Air
Channels: 9
Band: 2.4GHz
Modulation: DSMX/DSM2
Length: 2.1” (53.48mm)
Width: 1.15” (29.15mm)
Height: 0.55” (14.05mm)
Weight: .934oz (26.5 grams)
Experience Level: Advanced

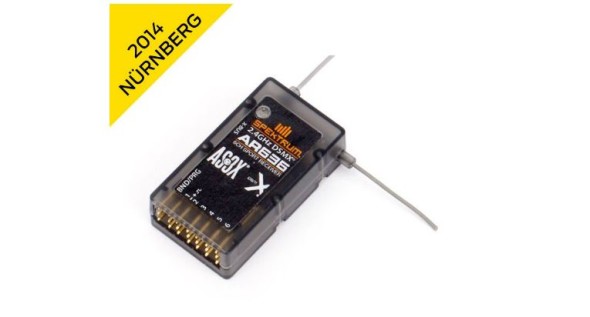

Spektrum AR636 6-Channel AS3X® Sport Receiver (SPMAR636)  Horizon Hobby - R_2014-01-29_17-49-15

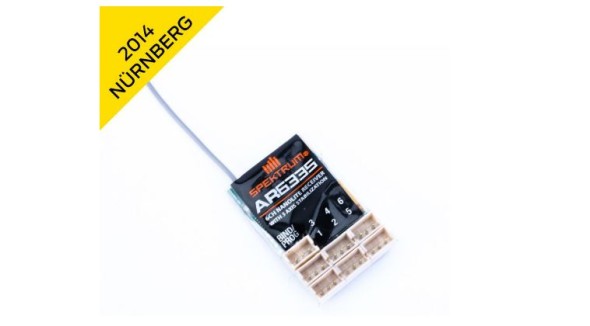

Spektrum AR6335 6-Channel AS3X® Nanolite Receiver (SPMAR6335)  Horizon Hobb_2014-01-29_17-48-31

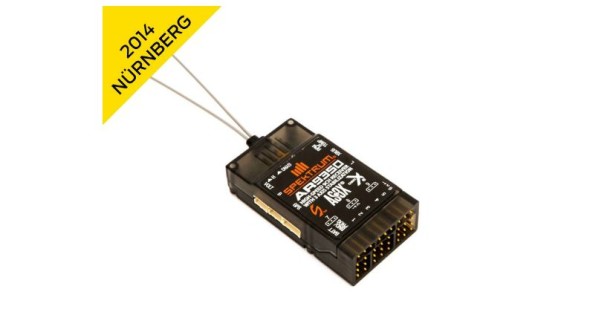

Spektrum AR9350 9-Channel AS3X Receiver (SPMAR9350)  Horizon Hobby - Radio Cont_2014-01-29_17-49-41
