Phoenix Model 1/7 Scale Gripen 90mm EDF Jet ARF

Phoenix Model is ever expanding their selection of 90mm EDF powered jets. One of the latest additions to the hangar is the JAS39 Gripen, a multi-role fighter aircraft manufactured by the Swedish aerospace company Saab. This delta winged fighter is powered by a Volvo RM12 turbofan that is capable of producing over 18,000 pounds of thrust in afterburner and can push this single engine jet to speeds in excess of Mach 2! Phoenix Model’s Gripen is a a 1/7 scale ARF kit that uses quality balsa and ply construction techniques. The airframe comes out of the box pre-covered with covering that is complete with military markings and panel lines. A removable, two piece wing design simplifies  transport and storage. Fixed CNC suspension metal struts are included and can be upgraded to optional electric retracts. Other scale enhancing features include a detailed cockpit, complete with instrument panels and scale pilot figure, and a detailed engine nozzle.

To view additional details, click over to Tower Hobby’s Phoenix Model Gripen product information page.

Specifications:

  • Wingspan: 42.7 in (1084 mm)
  • Wing Area: 651 in² (42 dm²)
  • Wing Loading: 44.2 oz/ft² (135 g/dm²)
  • Weight: 11.4-11.9 lb (5.2-5.4 kg)
  • Length: 65.1 in (1655 mm)

Completion requires: 6-9 channel radio with 6 mini high-torque servos and 2 standard high-torque servos, 90 mm EDF jet with minimum thrust of 4 kg, 120-160A ESC, 8S-12S 5000mAh 60C LiPo battery, LiPo-compatible charger, electric retracts (optional)

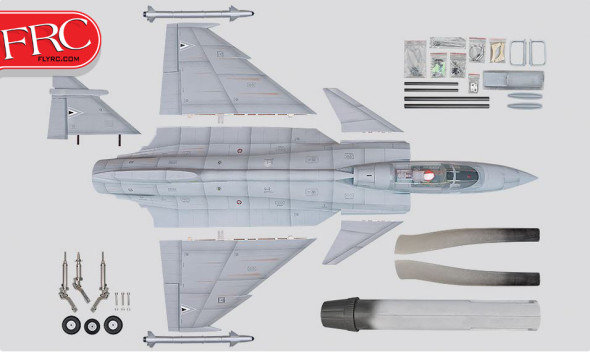

Phoenix Model® 17 Gripen EDF Jet ARF Kit

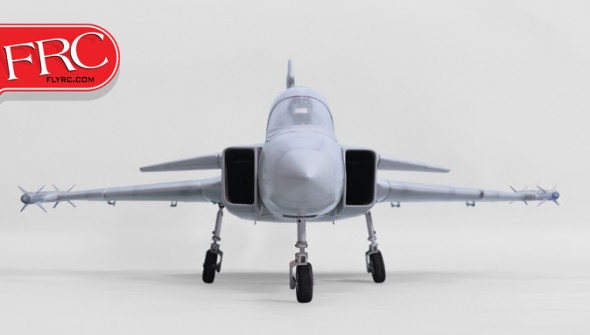

Phoenix Model® 17 Gripen EDF Jet ARF Stud2

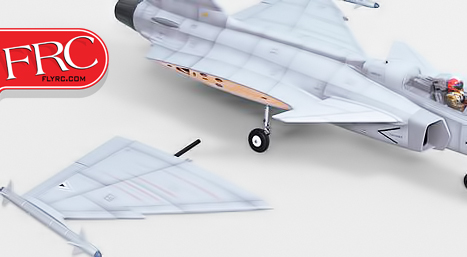

Phoenix Model® 17 Gripen EDF Jet ARF Wing

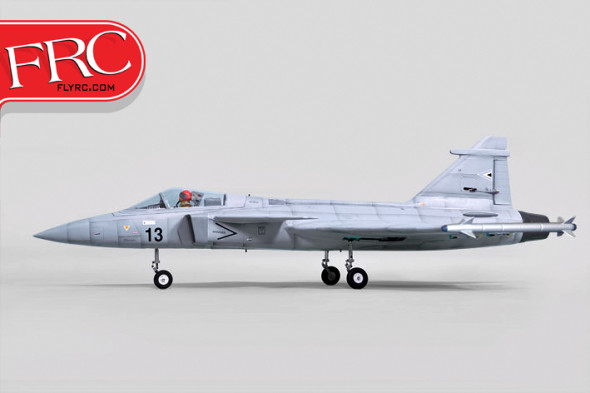

Phoenix Model® 17 Gripen EDF Jet ARF Stud1

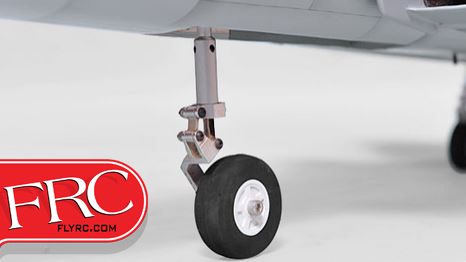

Phoenix Model® 17 Gripen EDF Jet ARF Gear

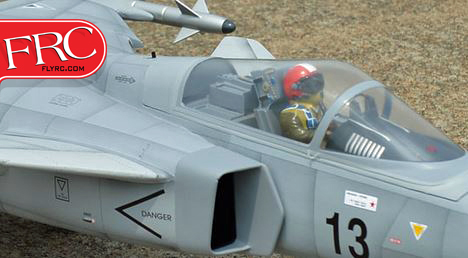

Phoenix Model® 17 Gripen EDF Jet ARF Cockpit

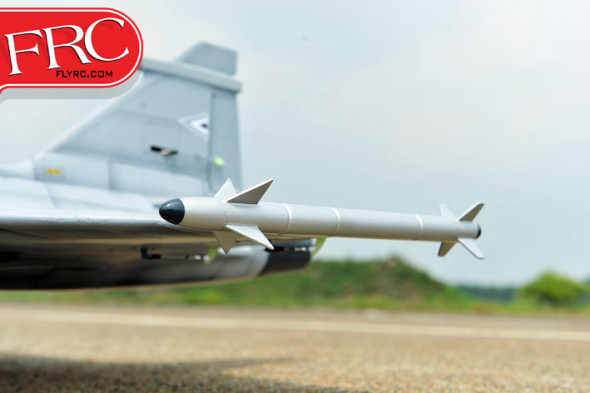

Phoenix Model® 17 Gripen EDF Jet ARF Arms

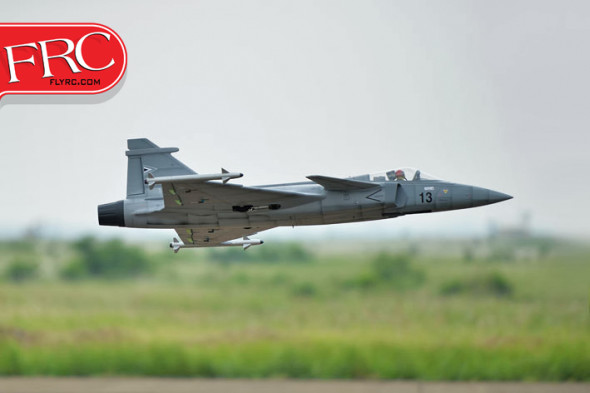

Phoenix Model® 17 Gripen EDF Jet ARF Pass

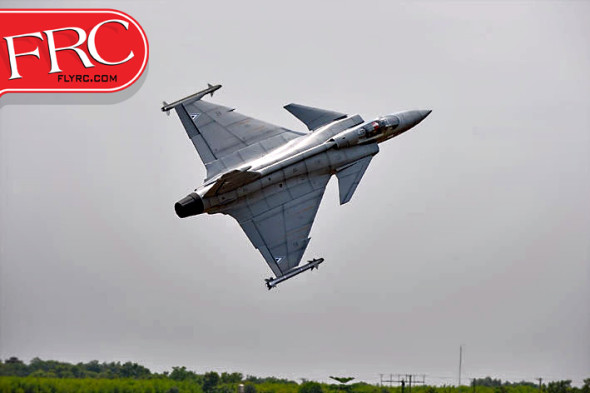

Phoenix Model® 17 Gripen EDF Jet ARF Pass1
