Turnigy Fabrikator 3D Printer

Will 2015 be the year that 3D printers become ubiquitous? HobbyKing is out to make that a reality with the release of their Turnigy Fabrikator. Touted as the best value for money printer on the market, this quality 3D printer includes many of the features of printers costing three times as much and makes 3D printing available to anyone with a computer. Whether a user is into planes, multi-rotors, cars, boats, helicopters, robotics, trains or even anime figurines, the Fabrikator may very well become their most versatile tool. Can’t find that rare part for an old model or want to modify an existing component? Now a modeler can simply print what they want, when they want it.


The Turnigy Fabrikator uses ABS and PLA filaments, available from the network of  HobbyKing warehouses. Say goodbye to the days of setting up a job on the the printer at bedtime and hoping the job is finished by morning. This unit can print high quality finishes at up to at 150mm per second. Features like a solid frame, super stable quad rail supported print plate, high quality NEMA Class motors, removable glass print platform and twin belt Y axis drives make for accurate jobs, with no need for constant mechanical adjustments. A series of instructional videos guide new users through initial set-up of the printer, while a dynamic and living trouble shooting guide helps a user work through any difficulties encountered. Assembly does not require technical prowess and can be completed by most purchasers in less than six hours.


• Ball bearing liner rods
• Rolled lead-screw with anti-backlash drive

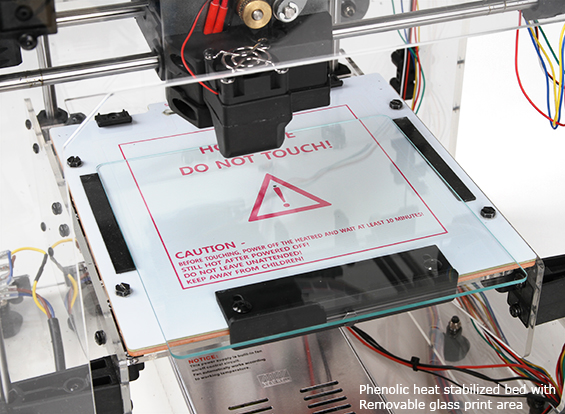

• Phenolic heat stabilized bed W/removable Glass print area
• Heated print bed
• NEMA 23 and 17 motors
• 4 rod supported print plate for high speed printing
• 6 sided full printer support for high accuracy
• SD card cable free printing|
• PLA and ABS filament compatible
• Top feed anti-bind spool feed
• Twin print cooling fans
• 2A Heatsink stepper drivers with active cooling
• 220~110V A/C compatible
• Homing and Limit switches

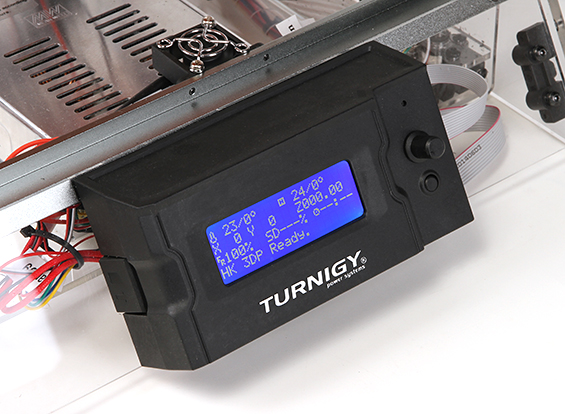

• Full LCD GUI with on the fly tuning
• Large 150x150x100mm print area
• Dual bearing supported twin belt Y axis drive
• Heavy Duty 12Volt 29Amp Power supply
• Open Source control Architecture and support
• Full Parts support and future expandability platform


Overall size: 360x400x600mm
Print size: 150x150x100mm
Nozzle diameter: 0.4mm
Filament diameter: 1.75mm
Print speed: up to 300mm/sec
Print platform: Phenolic heat stabilized bed with removable glass print platform
Filament type: ABS and PLA
