Freewing Mirage 2000C-5 80mm PNP EDF Jet

Now in stock and shipping from MotionRC is this beautiful 80mm EDF powered version of the French Dassault Mirage 2000. This is Freewing’s latest product in an expanding line-up of 80mm EDF powered jets. Loaded with exciting scale features, the Freewing Mirage is powered by a metal housing equipped 12 blade, factory balanced EDF.

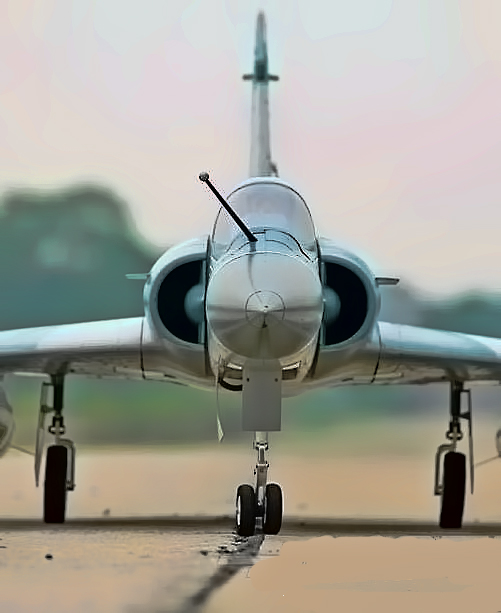

Freewing Mirage 2000C-5 80mm EDF Jet_05

The higher blade count of the impeller creates a more realistic jet turbine sound than impellers with a mere five or six blades. The powerful 1750kV brushless motor produces nearly 6 pounds of thrust. Other quality components included in this Plug-n-Play jet include an 80A Hobbywing ESC, 9g precision servos, and electronic retracts with full metal shock absorbing struts. Click through to MotionRC for more information or to purchase!

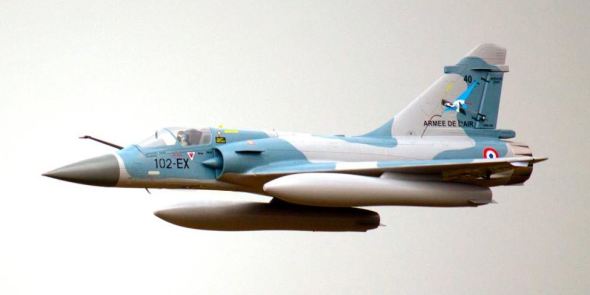

Freewing Mirage 2000C-5 80mm EDF Jet_02



Features and Specifications:

  • 12 Blade factory balanced EDF with metal housing combined with 3530-1750KV brushless outrunner motor produces realistic jet turbine sound and an incredible 6 lbs of thrust
  • Composite fan blades combined with metal EDF housing make the Mirage 2000 AMA compliant (the fan blades themselves are NOT metal, so there are no flying restrictions)
  • Super scale details include hand painted, scale-sized pilots, full instrument panel, refueling probe, scale drop tanks, airfoil panel lines, and complete French Air Force graphics package
  • 80 Amp Hobbywing ESC with 5A BEC
  • Electronic retractable landing gear with all metal shock-absorbing struts
  • Steerable, shock absorbing nose gear for enhanced ground maneuverability
  • Spring operated nose gear door
  • Carbon spars and EPO foam construction provide the perfect balance between strength and flexibility
  • Nylon hinges on all control surfaces (superior to foam hinges)
  • Outrunner motor, servos, ESC and EDF come pre-installed for your convenience
  • Removable magnetic nose cone, and removable wings and vertical stabilizer for convenient transport

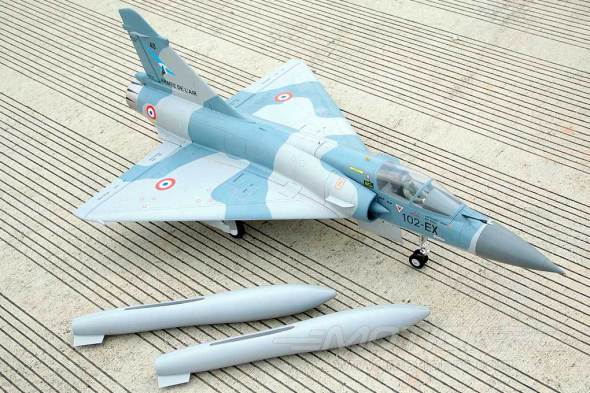

Freewing Mirage 2000C-5 80mm EDF Jet_07

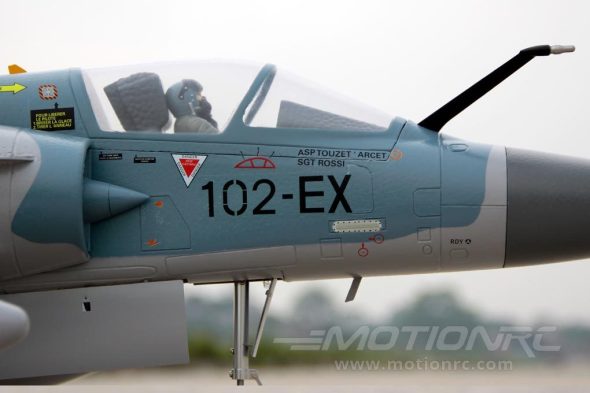

Freewing Mirage 2000C-5 80mm EDF Jet_06

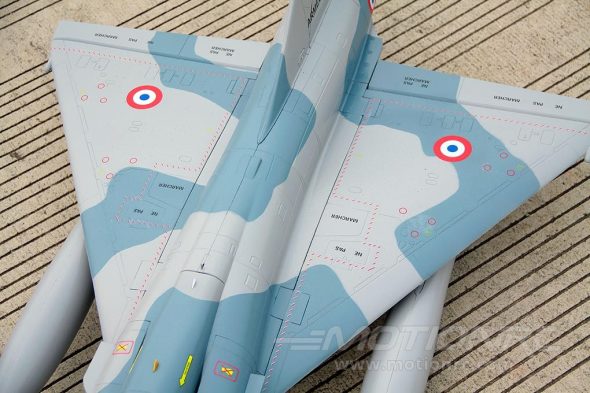

Freewing Mirage 2000C-5 80mm EDF Jet_08

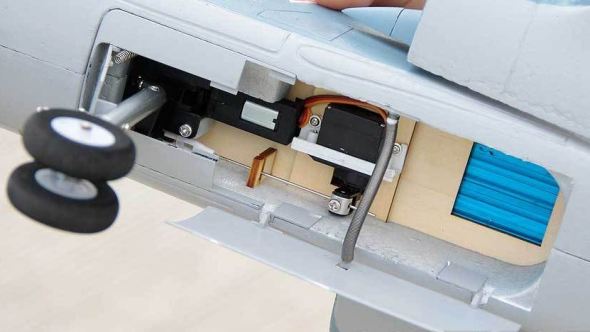

Freewing Mirage 2000C-5 80mm EDF Jet_01



Wingspan 790mm / 31.10in
Length 1250mm / 49.21in
Flying Weight 2200g / 78oz
CG (Center of Gravity) check manual
Power System 3530-1750kV Brushless Outrunner Motor
Electronic Speed Control 80A ESC, 5A BEC, EC5 Connector
Propeller / EDF 80mm Metal EDF with 12 Blade Fan
Servos 9g standard with 100mm lead: nose gear steering
9g standard with 300mm lead: left flap, elevator
9g reverse with 300mm lead: right flap, rudder
9g standard with 550mm lead: aileron
Landing Gear Electronic retractable main gear and steerable nose gear with all metal shock absorbing struts
Required Battery 6S 22.2V 4000mAh 60C LiPo
Required Radio 6 Channel
Ailerons Yes
Elevator Yes
Rudder Yes
Flaps No
Lights No
Hinge Type Nylon hinges
Material EPO Foam
Skill Level Intermediate / Advanced
Build Time 2 Hours
Recommended Environment Outdoor
