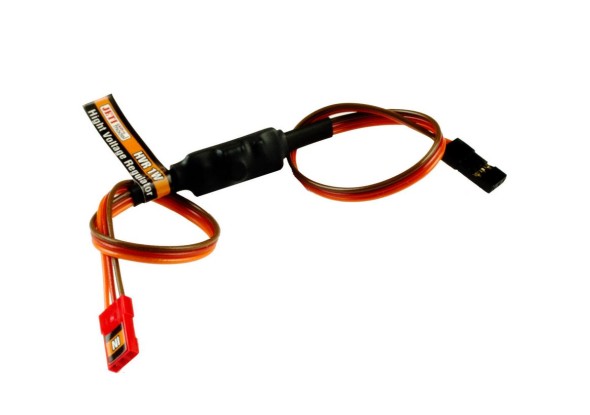

Esprit Model Jeti High Voltage Regulator Inline

The new Jeti High Voltage Inline regulator is the only high voltage switching BEC designed to regulate the voltage from a pilot’s  9.5-59V (3S-16S) power source and provide stabilized output voltage of 5.5V up to 150mA. Works with any on-board electric device (lights, pumps, retracts) in need of stable regulated power supply. A dedicated High Voltage Regulator allows pilot’s  to use a single on-board battery for all your electronic devices in the aircraft.

Specifications:

Manufacturer Jeti Model
Type Switching Regulator
Max Input Voltage 59V (16S)
Min Input Voltage 9.5V (3S)
Output Voltage 5.5V
Output Current 150mA Continues
Dimensions 20mm x 7mm x 5mm
Weight 2.5g
Max #Servos 1 Inline
Connector Universal JR/Hitec/Futaba
Applications On-Board Electric Devices

(1 unread) - barnesjonr - Yahoo Mail - Mozilla Firefox_2015-05-11_19-25-57

Click over to Esprit Model for more information or to purchase!
